Atlas® Bipod Clamps & Adapters

"It’s the next major addition to the ARCALOCK family, the 3-position lever-release clamp. Since its release in 2018, ARCALOCK has been an industry-standard for fast, solid lockup between rifles and accessories. Now we are adding more options and versatility to that mounting with the QD Arcalock Clamp." – Area 419 The ARCALOCK QD Clamp mechanically locks into place on Area 419 ARCALOCK Rail systems. It will also work with any ARCA rail by removing the ARCALOCK pins. It will bolt directly to any “NC” (No Clamp) style of Atlas® Bipods (except the 5-H which requires Extension Spigot for compatibility). Compatible Atlas® Bipod models listed below. It will also bolt directly to our BT20-B Bottom Picatinny Rail and BT56LD 1/4-20 Lever Adapter. This clamp is manufactured by Area 419 NOT by B&T Industries L.L.C. All warranty issues are to be processed through Area 419. NO HARDWARE INCLUDED.

"We are big ARCALOCK people, and think it’s the best solution for most people trying to shoot mid- to long-range. We also know that there are still a lot of rifles out there with Pic sections on the front end, or bipods that need to be used on both ARCA and Pic attachment points. Finally, we have a clamp that can do both – the ARCALOCK Dual Clamp." – Area 419 The ARCALOCK Dual Clamp works with Area 419 ARCALOCK Rail systems, ARCA rails from other manufacturers and Picatinny Rails with minimum of 4 slots. It will bolt directly to any “NC” (No Clamp) style of Atlas® Bipods (except the 5-H which requires Extension Spigot for compatibility). Compatible Atlas® Bipod models listed below. It will also bolt directly to our BT20-B Bottom Picatinny Rail and BT56LD 1/4-20 Lever Adapter. The ARCALOCK Dual Clamp is precision milled from aerospace grade 6061-T6 aluminum and stainless steel. Complete function and features detailed below. This clamp is manufactured by Area 419 NOT by B&T Industries L.L.C. All warranty issues are to be processed through Area 419. Includes two (2) 10-32 x 1/4″ low-profile socket head screws. Requires 3/32" hex wrench for installation (not included). Includes Torx key size T10 for fastener adjustment.

The ARCALOCK Spigot Extension was designed for use with Area 419's ARCALOCK Clamp. Some ARMS17-S accessory with matching hole pattern of 1.100” such as American Defense's ADM-170-s, Arisaka's Picatinny Rail Slider or Really Right Stuff's BTC-Pro Bipod Clamp. However due to design, some clamps will NOT fit such as Magpul's QR Rail Grabber (MAG1196) and Really Right Stuff's SC-ARC Bipod Clamp. It is ideal to adapt our BT35-NC 5-H Atlas® Bipod to an ARCA clamp for clearance of the cradle and operation of the clamp's knob. It will also extend all "NC" or No Clamp models (view complete list below) of Atlas® Bipods out extra 1.25″ for increased stability. To use with your Bipod that already has a clamp, lever or mount installed, simply remove it to attach the spigot. This spigot is manufactured by Area 419 NOT by B&T Industries L.L.C. Includes two 10-32 x 3/8" flathead socket screws and two 10-32 x 5/8" flathead socket screws.

• Weight: 1.79 oz
• Dimensions: 3.2 × 1.24 × 0.35 in

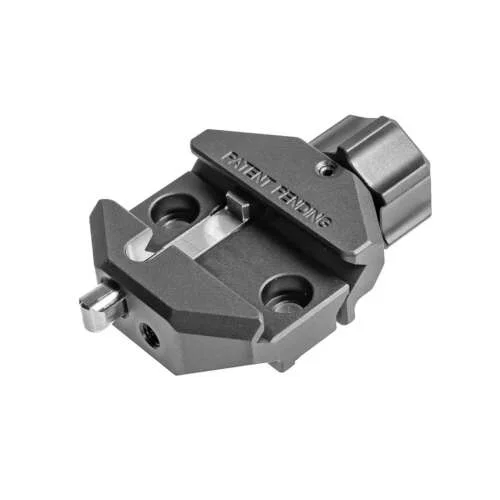

"Make Picatinny Great Again with the Patent Pending Arisaka Rail Slider. It transforms the Picatinny rail on your rifle into a multi-position sliding mount with a push button recoil lug. A unique detented knob is used to set sliding tension, accounts for out-of-spec rails, allows the mount to be removed or installed without having to slide it off the end of the rail, and can be quickly and easily tightened down for maximum precision." - Arisaka, LLC The Picatinny Rail Slider will bolt directly to any “NC” (No Clamp) style of Atlas® Bipods (except the 5-H which requires Extension Spigot for compatibility) using provided hardware. Compatible Atlas® Bipod models listed below. It will also bolt directly to our BT20-B Bottom Picatinny Rail and  BT56LD 1/4-20 Lever Adapter. The Rail Slider is CNC machined from stainless steel and MIL-A-8625 Type III hard coat anodized 6061-T651 aluminum. Includes two (2) 10-32 x 5/16" socket cap screws. Requires a 5/32" allen wrench for installation (not included). Recommended torque: 30 inch lbs. Made in the USA. This clamp is manufactured by Arisaka, LLC NOT by B&T Industries, LLC. All warranty issues are to be processed through Arisaka.

• Weight: 2.2 oz

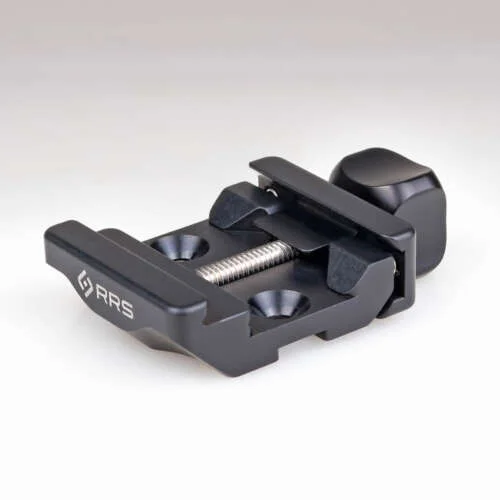

"Experience the blend of reliability and lightness with the BTC-Pro clamp. This screw knob clamp offers precise control, ensuring secure attachment of your equipment while shedding unnecessary weight. For photographers and outdoor enthusiasts seeking the optimal balance between strength and portability, the BTC-Pro is your ultimate companion. No compromise on durability, no added burden - that's the BTC-Pro promise." - Really Right Stuff SOAR Division The BTC-Pro Bipod Clamp's Dual Combination Jaw allows for the attachment to either a Picatinny Rail or RRS 1.5" Dovetail Standard. It will bolt directly to any “NC” (No Clamp) style of Atlas® Bipods (except the 5-H which requires Extension Spigot for compatibility) using provided hardware. Compatible Atlas® Bipod models listed below. It will also bolt directly to our BT56LD 1/4-20 Lever Adapter. The BTC-Pro Bipod Clamp is CNC machined from 6061-T651 aluminum. Includes two (2) 10-32 x 3/8 flat-head screws and (1) 1/8" hex-key. Made in the USA. This clamp is manufactured by Really Right Stuff, SOAR Division NOT by B&T Industries, LLC. All warranty issues are to be processed through Really Right Stuff.
